WESTERN ARCHITECTURE 2

A HISTORY OF THE DEVELOPMENT OF ARCHITECTURE IN THE WESTERN HEMISPHERE

GOTHIC TO NEOCLASSIC PERIOD

GOTHIC ERA

Gothic architecture

Gothic architecture is an architectural style that was prevalent in Europe from the late 12th to the 16th century, during the High and Late Middle Ages, surviving into the 17th and 18th centuries in some areas. It evolved from Romanesque architecture and was succeeded by Renaissance architecture. It originated in the Île-de-France and  Picardy regions of northern France. The style at the time was sometimes known as opus Francigenum (lit. 'French work'); the term Gothic was first applied contemptuously during the later Renaissance by those ambitious to revive the architecture of classical antiquity.

Gothic architecture began with a series of experiments aimed at fulfilling specific patron requests and accommodating the ever-growing number of pilgrims visiting sites that housed precious relics. Pilgrims in the high Middle Ages (circa 1000 A.D. to 1250 A.D.) increasingly travelled to well-known pilgrimage sites and to local sites where local and national saints were reputed to have performed miracles. The churches and monasteries that housed important relics, therefore, sought to heighten the popularity of their respective saints and build appropriate shrines for them. These shrines were not merely gem-encrusted reliquaries but, more importantly, powerful architectural settings.

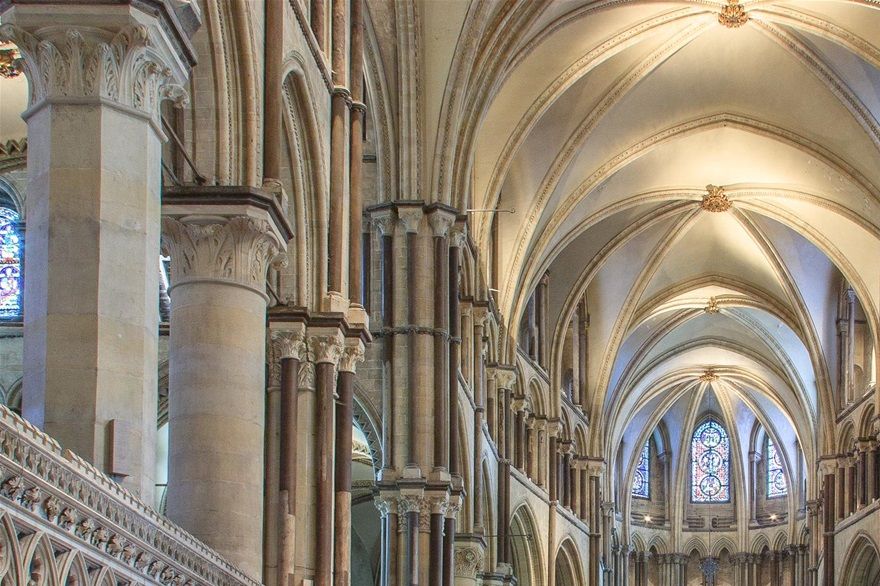

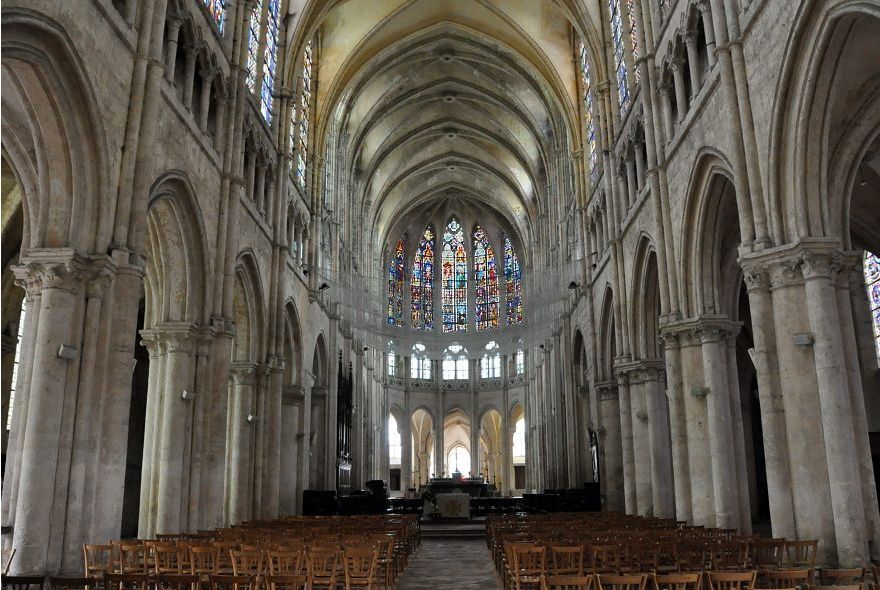

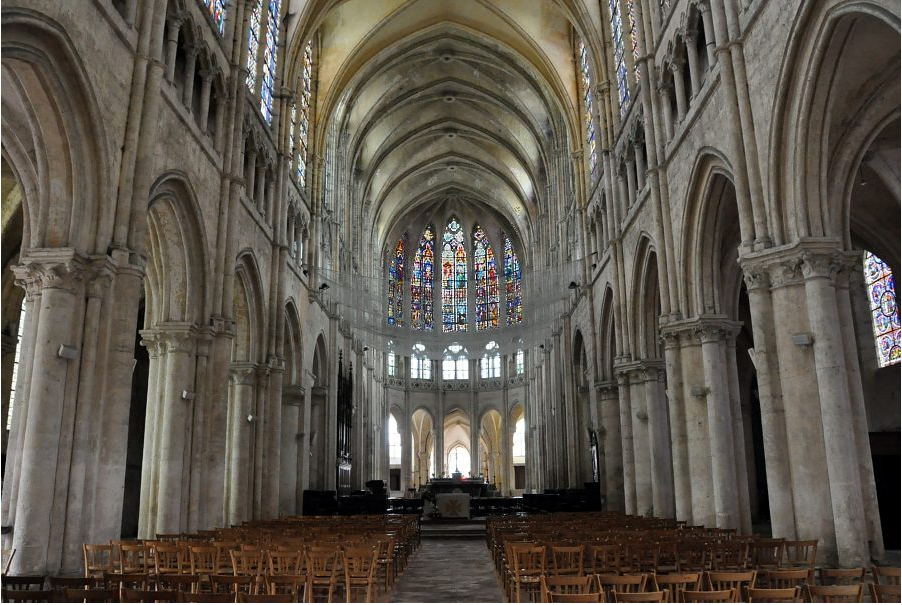

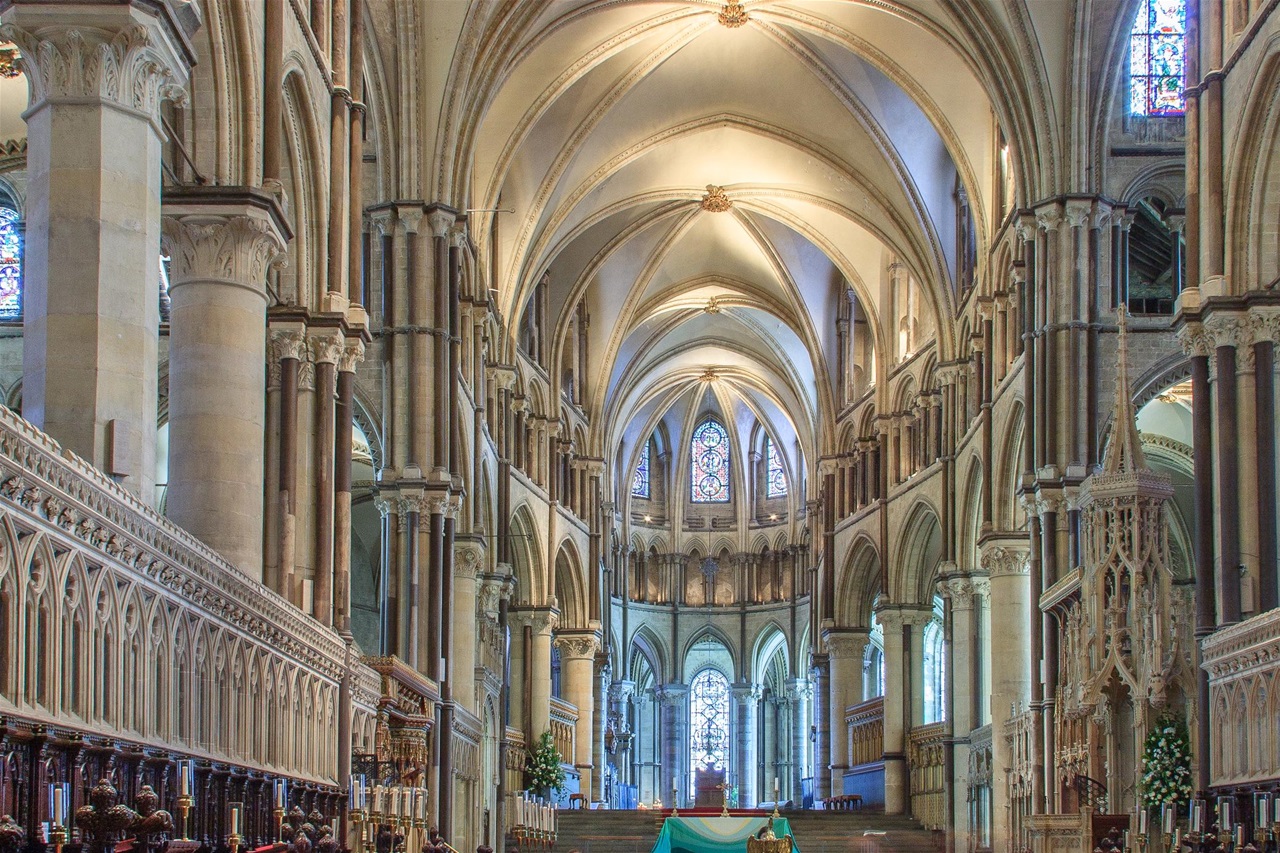

The defining design element of Gothic architecture is the pointed arch. The use of the pointed arch, in turn, led to the development of the pointed rib vault and the flying buttress, combined with elaborate tracery and stained glass windows.

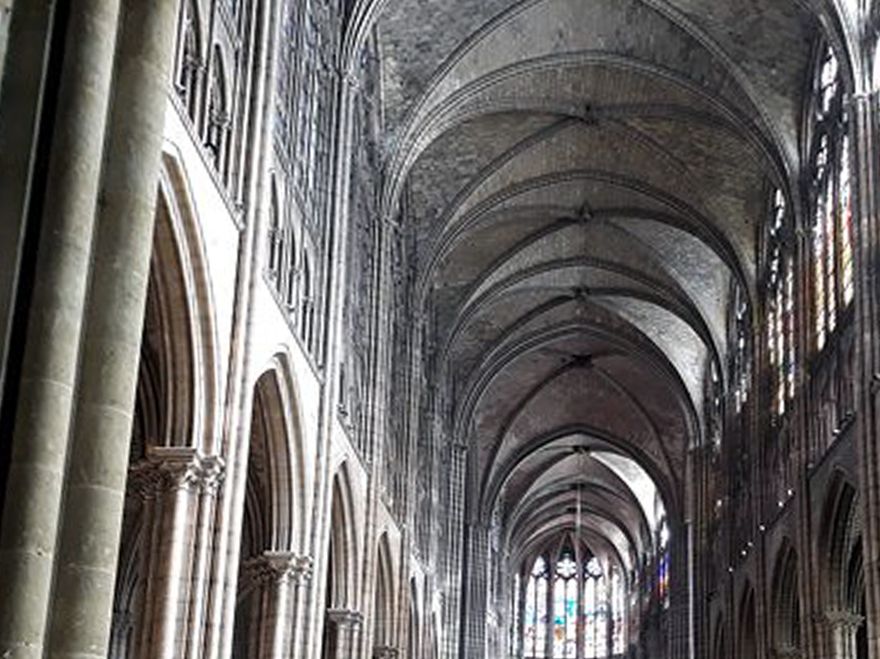

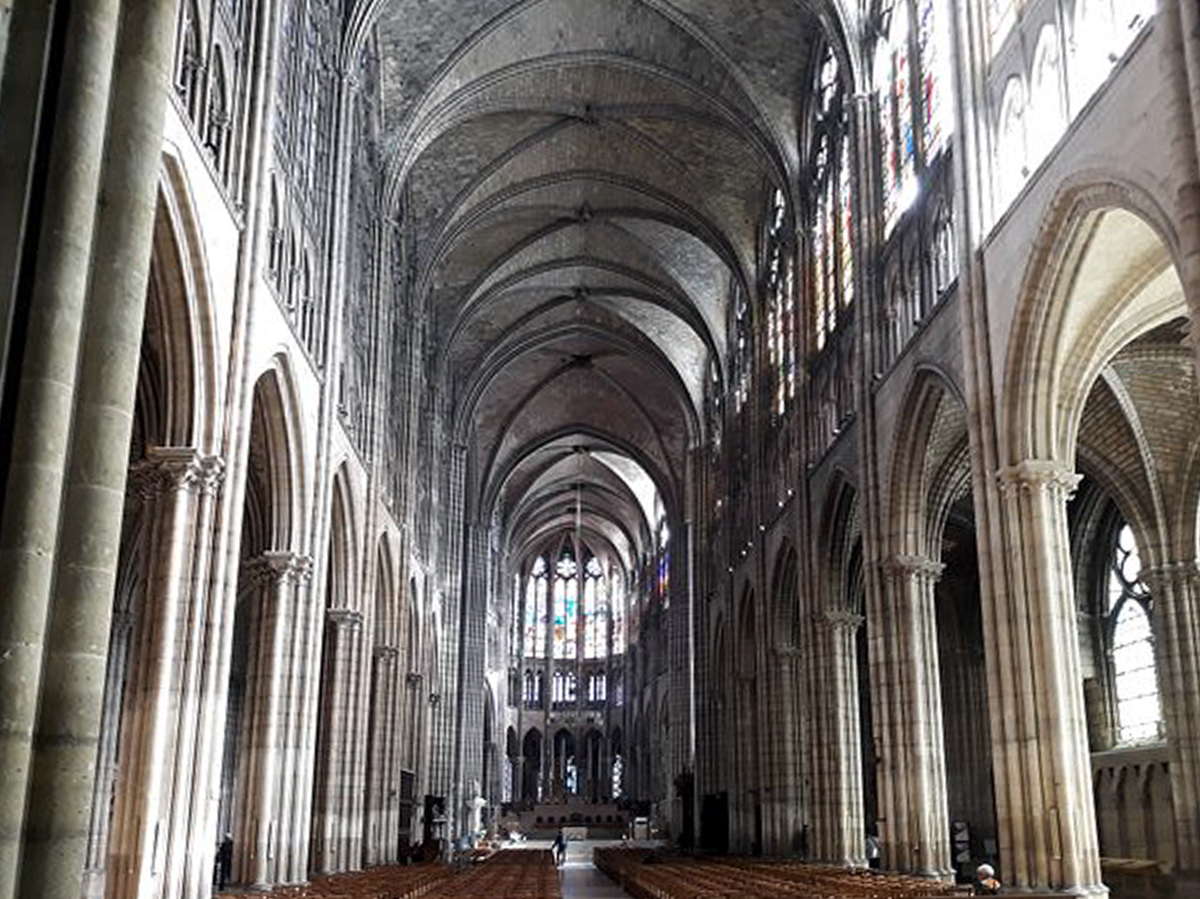

At the Abbey of Saint Denis, near Paris, the choir was reconstructed between 1140 A.D. and 1144 A.D., drawing together for the first time the developing Gothic architectural features. In doing so, a new architectural style emerged that emphasised verticality and the effect of light transmitted through stained-glass windows.

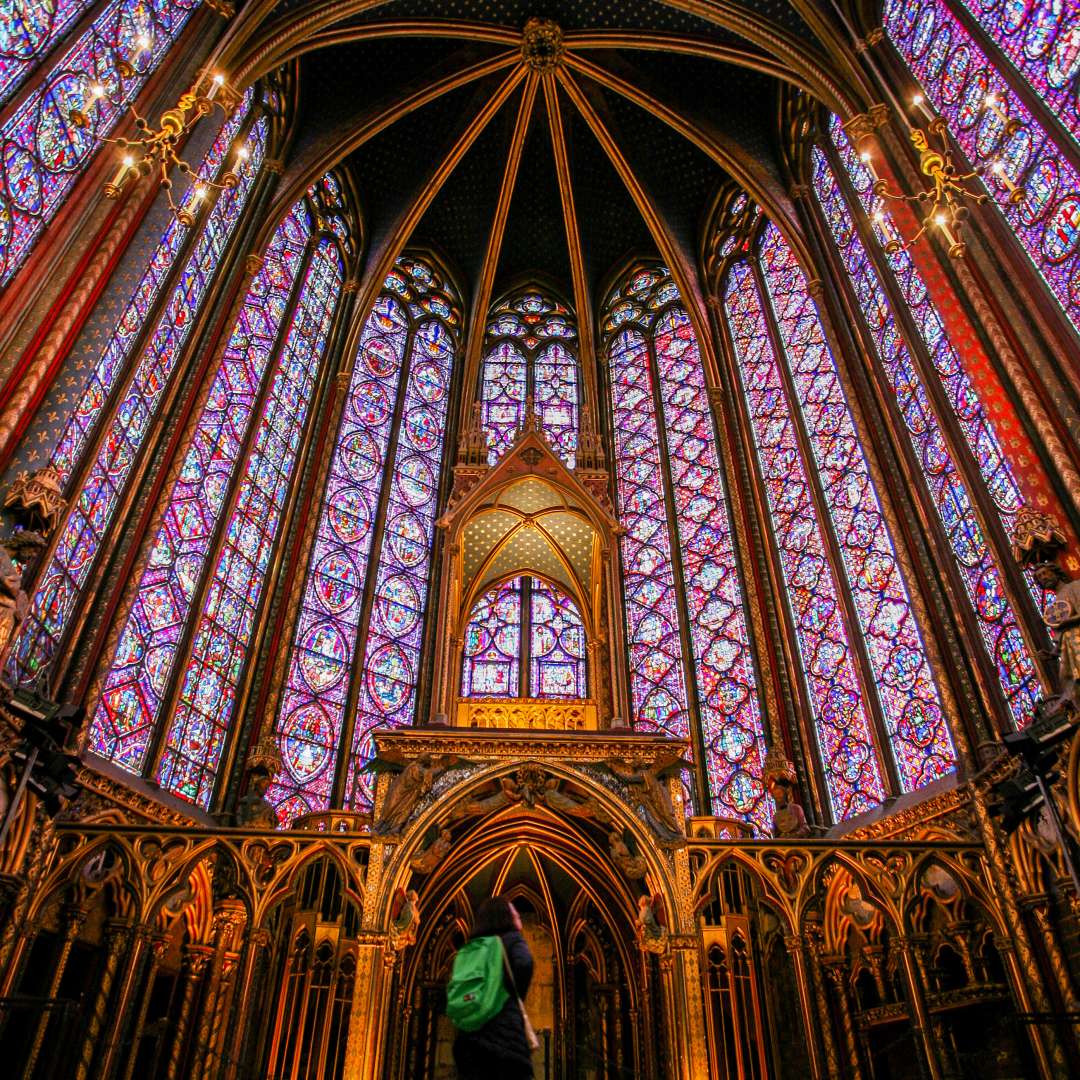

The use of stained glass, however, is not the only defining element of Gothic architecture, and neither are the pointed arch, the ribbed vault, the rose window, or the flying buttress, as many of these elements were used in one way or another in preceding architectural traditions. It was rather the combination and constant refinement of these elements, along with the quick response to the rapidly changing building techniques of the time, that fuelled the Gothic movement in architecture. Consequently, it is difficult to point to one element or the exact place where Gothic first emerged; however, it is traditional to initiate a discussion of Gothic architecture with the Basilica of St Denis (circa 1135–1344 A.D.) and its patrons, Abbe Suger, who began to rebuild the west front and the choir of the church.

As he wrote in his De Administration, the old building could no longer accommodate the large volumes of pilgrims who were coming to venerate the relics of Saint-Denis, and the solution for this was twofold: a west façade with three large portals and the innovative new choir, which combined an ambulatory with radiating chapels that were unique as they were not separated by walls. Instead, a row of slim columns was inserted between the chapels and the choir arcade to support the rib vaults. The result enabled visitors to circulate around the altar and come within reach of the relics without disrupting the altar space, while also allowing them to experience the large stained-glass windows in the chapels.

As confirmed by Abbe Suger, the desire for more stained glass was not to bring more daylight into the building, but to fill the space with a continuous ray of colourful light, like mosaics or precious stones, which would make the wall vanish. The demand for ever more stained-glass windows and the search for techniques that would support them are constant throughout the development of Gothic architecture, as is evident in the writings of Abbe Suger, who was fascinated by the mystical quality of such lighting.

Common examples are found in Christian ecclesiastical architecture, and Gothic cathedrals and churches, as well as abbeys and parish churches. It is also the architecture of many castles, palaces, town halls, guildhalls, universities, and, less prominently today, private dwellings. Many of the finest examples of medieval Gothic architecture are listed by UNESCO as World Heritage Sites.

With the development of Renaissance architecture in Italy during the mid-15th century, the Gothic style was supplanted by the new style, but in some regions, notably England and what is now Belgium, Gothic continued to flourish and develop into the 16th century. A series of Gothic revivals began in mid-18th-century England, spread through 19th-century Europe, and continued, largely for churches and university buildings, into the 20th century.

Medieval contemporaries characterised the style in Latin as opus Francigenum ("French work" or "Frankish work"), as opus modernum ("modern work"), or as novum opus ("new work"). Italian-speakers could call it maniera tedesca ("German style").

The term "Gothic architecture" originated as a pejorative description. Giorgio Vasari used the term "barbarous German style" in his Lives of the Artists (1550 A.D.) to describe what is now considered the Gothic style, and in the introduction to the Lives, he attributes various architectural features to the Goths, whom he held responsible for destroying the ancient buildings after they conquered Rome, and for erecting new ones in this style. When Vasari wrote, Italy had experienced a century of building in the Vitruvian architectural vocabulary of classical orders revived in the Renaissance and seen as evidence of a new Golden Age of learning and refinement. Thus, from that point of view, the Gothic style, being in opposition to classical architecture, was associated with the destruction of progress and sophistication. The assumption that classical architecture was better than Gothic architecture was widespread and proved difficult to counter. Vasari was echoed in the 16th century by

François Rabelais, who referred to "Gotz" and "Ostrogotz".

The Gothic style of architecture was strongly influenced by Romanesque architecture, which preceded it; by the growing population and wealth of European cities; and by the desire to express local grandeur. It was influenced by theological doctrines that called for more light and by technical improvements in vaults and buttresses that allowed much greater height and larger windows. It was also influenced by the necessity of many churches, such as Chartres Cathedral and Canterbury Cathedral, to accommodate growing numbers of pilgrims. It adapted features from earlier styles.

According to Charles Texier and Josef Strzygowski, after lengthy research and study of churches in the medieval city of Ani, the capital of the medieval kingdom of Armenia, they believed that they had discovered the oldest Gothic arch. According to these historians, the architecture of the Saint Hripsime Church near the Armenian religious seat Etchmiadzin was built in the fourth century A.D. and was repaired in 618 A.D. The cathedral of Ani was built in 980–1012 A.D. However, many elements of Islamic and Armenian architecture cited as influences on Gothic architecture also appeared in Late Roman and Byzantine architecture, the most notable example being the pointed arch and flying buttress. The most notable example is the capitals, which are forerunners of the Gothic style and deviated from the Classical standards of ancient Greece and Rome through serpentine lines and naturalistic forms.

Architecture "became a leading form of artistic expression during the late Middle Ages". Gothic architecture began in the early 12th century in northwest France and England and spread throughout Latin Europe in the 13th century. By 1300 A.D., a first "International Style" of Gothic had developed, with common design features and formal language. A second "international style" emerged by 1400, alongside innovations in England and central Europe that produced both the perpendicular and flamboyant varieties. Typically, these typologies are identified as:

• c. 1130 – c.1240 A.D. Early  to High Gothic  and Early English

• c. 1240 – c.1350 A.D. Rayonnant and Decorated Style

• c. 1350 – c.1500 A.D. Late Gothic: Flamboyant and Perpendicular

• c. 16th–18th century Post-Gothic

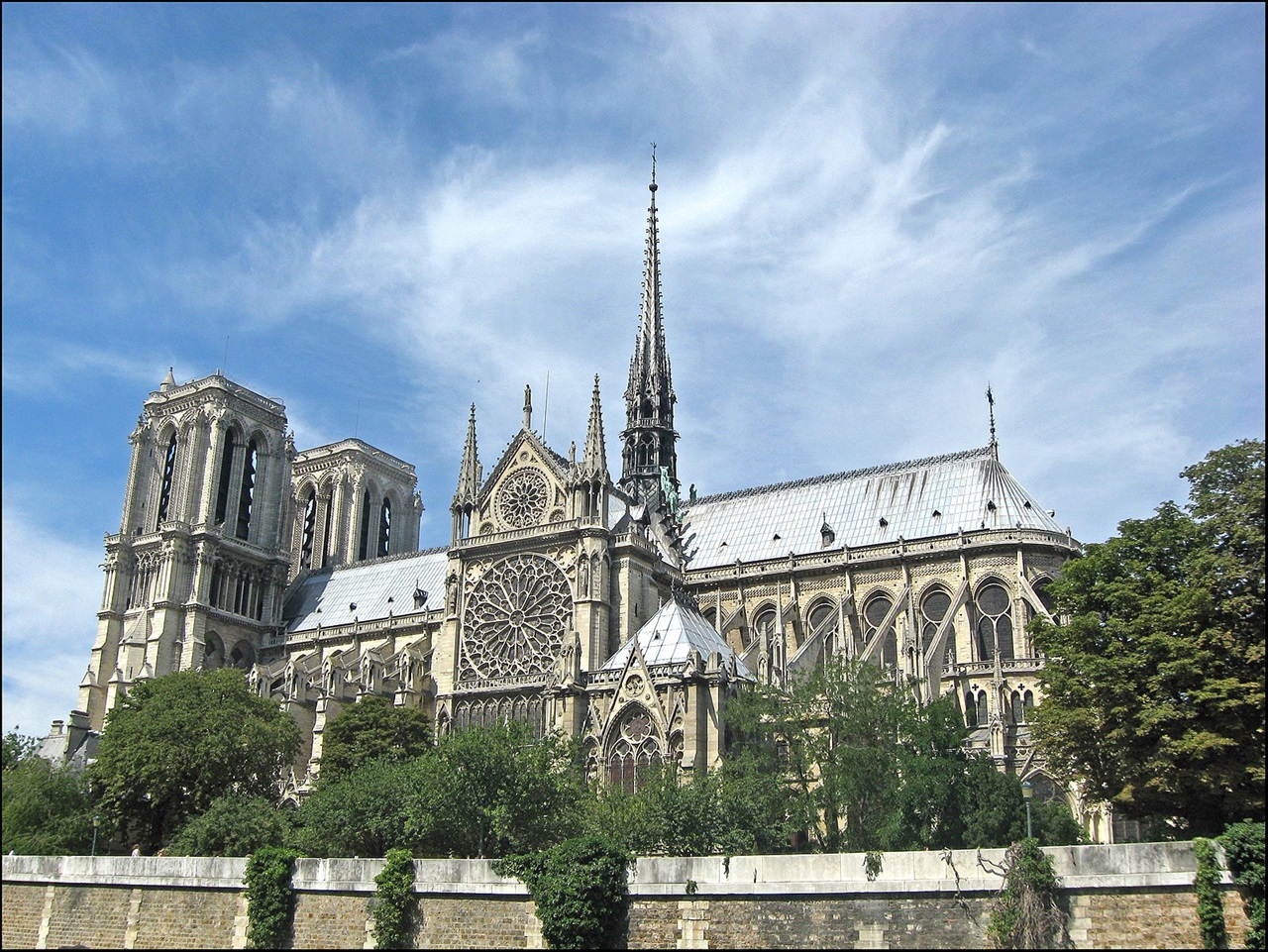

Notre-Dame-de-Paris, construction began in 1163 A.D. under Bishop Maurice de Sully and was completed by 1260 A.D.

Aerial view of Lincoln Cathedral, 1092 A.D.

RENAISSANCE & MANNERISM

Renaissance architecture

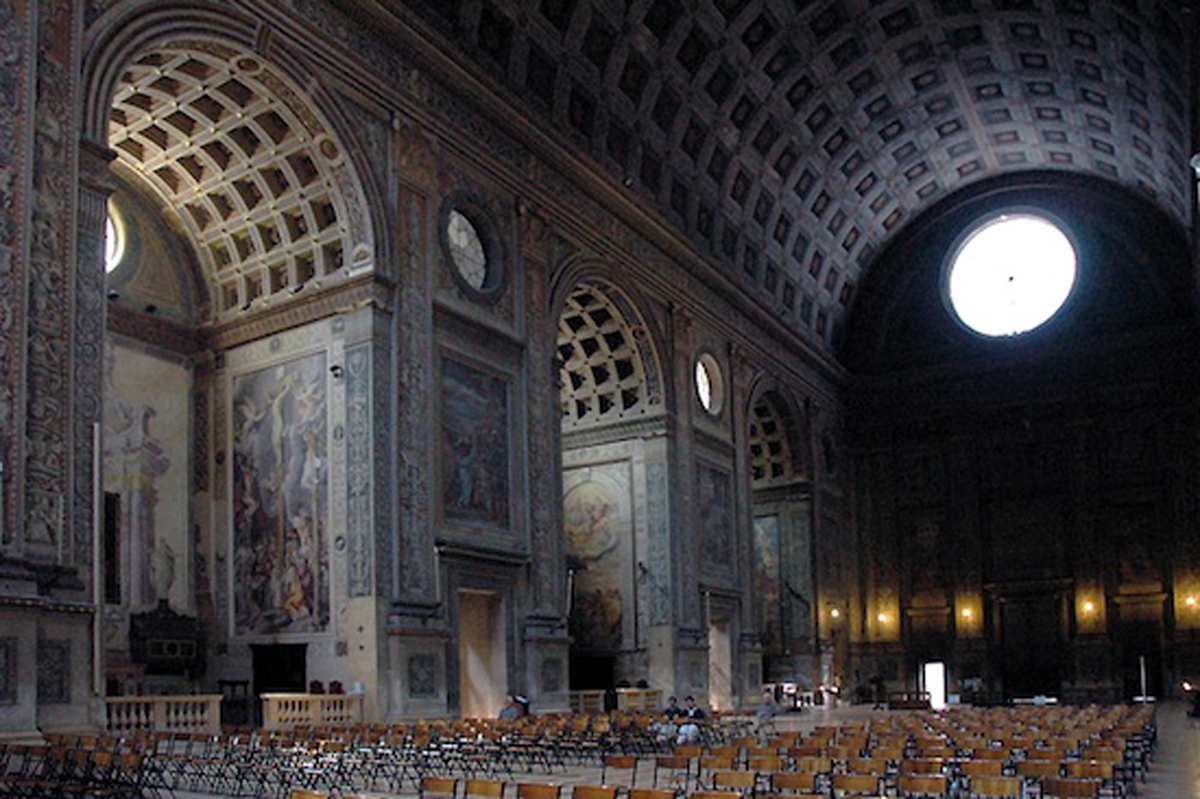

During the Renaissance, Italy consisted of many states, and intense rivalry among them spurred advances in technology and the arts. The Medici Family, an Italian banking family and political dynasty are famous for its financial support of Renaissance art and architecture. The period began around 1452 A.D. The architect and humanist Leon Battista Alberti (1404-1472 A.D.) completed his treatise De Re Aedificatoria (On the Art of Building) after studying the ancient ruins of Rome and Vitruvius's De Architectura.

His writings covered numerous subjects, including history, town planning, engineering, sacred geometry, humanism, and philosophies of beauty, and set out the key elements of architecture and its ideal proportions. In the last decades of the 15th century, artists and architects began visiting Rome to study its ruins, especially the Colosseum and the Pantheon. They left behind precious records of their studies in the form of drawings.

While humanist interest in Rome had been building up over more than a century (dating back at least to Petrarch in the 14th century), antiquarian considerations of monuments had focused on literary, epigraphic, and historical information rather than on the physical remains. Although some artists and architects, such as Filippo Brunelleschi (1377-1446 A.D.), Donatello (circa 1386–1466 A.D.), and Leon Battista Alberti, are reported to have studied Roman sculpture and ruins, almost no direct evidence of this work survives. By the 1480s, prominent architects, such as Francesco di Giorgio (1439-1502 A.D.) and Giuliano da Sangallo (circa 1455–1535 A.D.), were making numerous studies of ancient monuments, undertaken in ways that demonstrated that the process of transforming the model into a new design had already begun.

In many cases, drawing ruins in their fragmentary state necessitated a leap of imagination, as Francesco himself readily admitted in his annotation to his reconstruction of the Campidoglio, noting 'largely imagined by me, since very little can be understood from the ruins. Soon, grand buildings were constructed in Florence using the new style, like the Pazzi Chapel 1474-1478 A.D.) or the Palazzo Pitti (1458-1464 A.D.) The Renaissance began in Italy but slowly spread to other parts of Europe, with varying interpretations. Since Renaissance art is an attempt to revive Ancient Rome's culture, it uses pretty much the same ornaments as Ancient Greek and Roman art. However, because most, if not all, of the resources Renaissance artists had access to were Roman, Renaissance architecture and applied arts widely used certain motifs and ornaments specific to Ancient Rome. The most iconic one is the margent, a vertical arrangement of flowers, leaves, or hanging vines, used at pilasters.

Another Renaissance ornament is the round medallion, featuring a profile of a person, similar to Ancient cameos. Renaissance, Baroque, Rococo, and other post-medieval styles use putti (chubby baby angels) much more often than Greco-Roman art and architecture. An ornament reintroduced during the Renaissance, of Ancient Roman descent, and used in later styles, is the cartouche, an oval or oblong design with a slightly convex surface, typically edged with ornamental scrollwork.

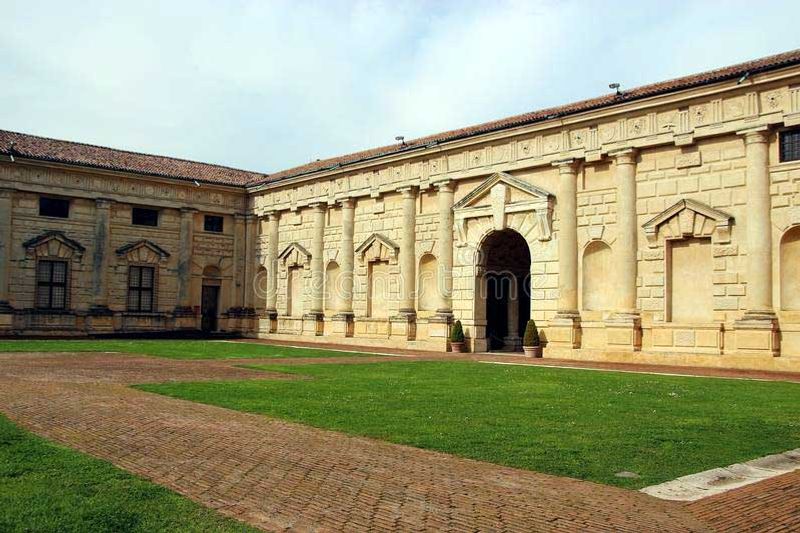

Mannerism or Late Renaissance ran between(1520–1600 A.D.). Mannerism is the term applied to certain aspects of artistic style, mainly Italian, in the period between the High Renaissance of the early 16th century and the beginnings of Baroque art in the early 17th century. From the third decade of the 16th Century, political and religious tensions erupted violently in Italy, particularly in Rome, which was sacked in 1527 A.D. by the imperial troops of Charles V. The school of Bramante and Raphael, which had produced the High Renaissance style, was dispersed throughout Italy as artists fled from devastated Rome. Mannerism appeared and prevailed in some regions until the end of the 16th Century, when the Baroque style developed. Mannerism was antithetical to many of the principles of the High Renaissance. Instead of harmony, clarity, and repose, it was characterised by extreme sophistication, complexity, and novelty. Mannerist architects were no less interested in ancient Classical architecture than were their predecessors, but they found other qualities in ancient Roman architecture to exploit. In fact, they often displayed a greater knowledge of antiquity than earlier artists.

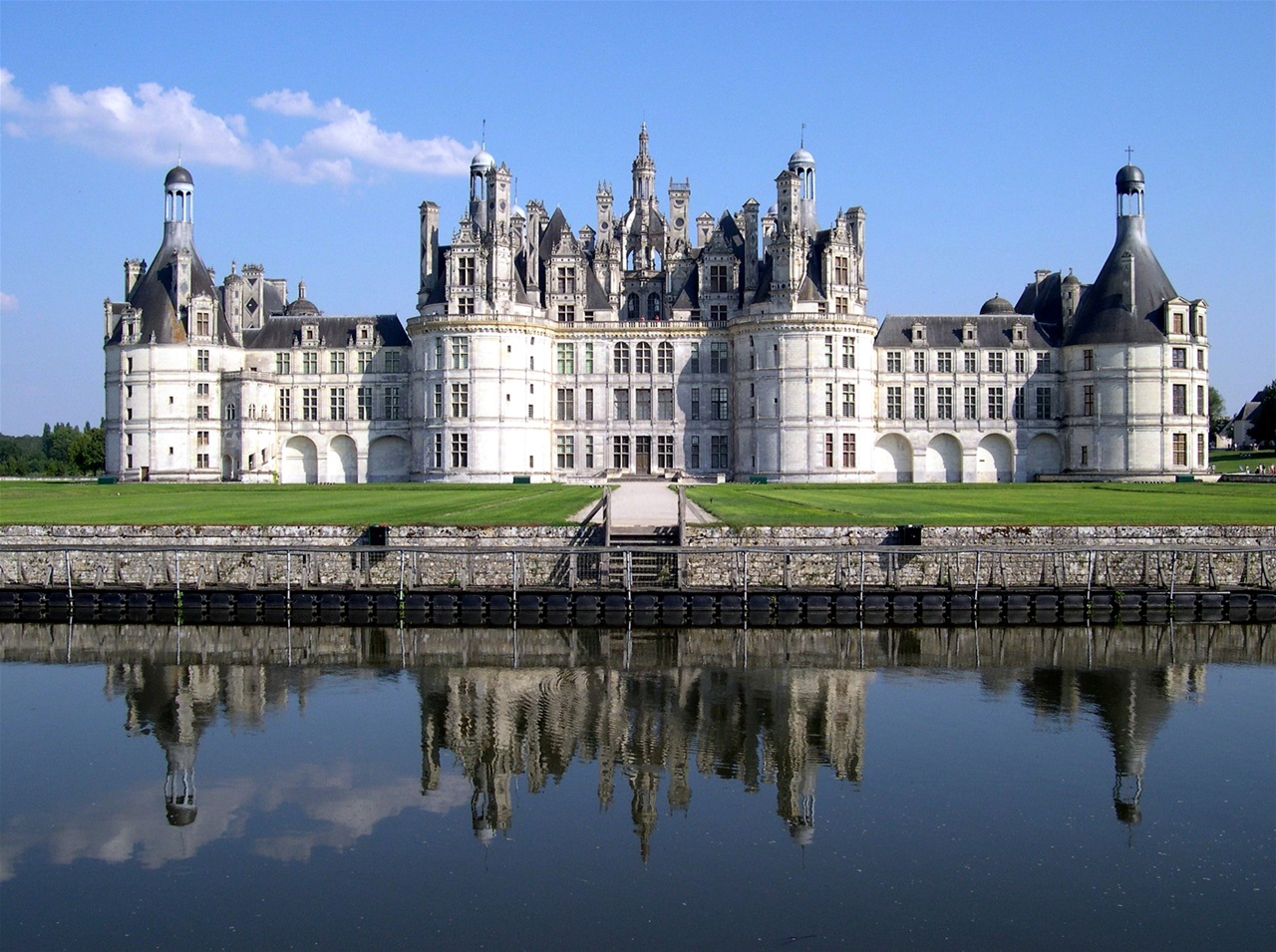

Northern Renaissance - Château de Chambord (Loire, France), 1519-1547 A.D., by Leonardo da Vinvi & Domenico da Cortona Cortona

BAROQUE

Baroque architecture

The Baroque emerged from the Counter-Reformation as an attempt by the Catholic Church in Rome to convey its power and to emphasise the magnificence of God. The Baroque and its late variant, Rococo, were the first truly global styles in the arts. Dominating more than two centuries of art and architecture in Europe, Latin America, and beyond from circa 1580 A.D. to circa 1800 A.D. Born in the painting studios of Bologna and Rome in the 1580s and 1590s, and in Roman sculptural and architectural ateliers in the second and third decades of the 17th century, the Baroque spread swiftly throughout Italy, Spain and Portugal, Flanders, France, the Netherlands, England, Scandinavia, and Russia, as well as to central and eastern European centres from Munich (Germany) to Vilnius (Lithuania).

The Portuguese, Spanish, and French empires, and the Dutch trading network, played a leading role in spreading the two styles into the Americas and colonial Africa and Asia, to places such as Lima, Mozambique, Goa, and the Philippines. Due to its spread across regions with different architectural traditions, multiple Baroque styles emerged based on location, differing in some aspects but similar overall. For example, French Baroque appeared severe and detached, by comparison, preempting Neoclassicism and the architecture of the Age of Enlightenment.

Hybrid Native American/European Baroque architecture first appeared in South America (as opposed to Mexico) in the late 17th century, after the indigenous symbols and styles that characterise this unusual variant of Baroque had been kept alive over the preceding century in other media, a very good example of this being the Jesuit Church in Arequipa (Peru).

The first Baroque buildings were cathedrals, churches, and monasteries, soon joined by civic buildings, mansions, and palaces. Being characterised by dynamism, for the first time, walls, façades, and interiors curved, a good example is San Carlo alle Quattro Fontane in Rome. Baroque architects took the basic elements of Renaissance architecture, including domes and colonnades, and made them higher, grander, more decorated, and more dramatic. The interior effects were often achieved through the use of quadratura, or trompe-l'œil painting combined with sculpture: the eye is drawn upward, giving the illusion of looking into the heavens. Clusters of sculpted angels and painted figures crowd the ceiling.

Light was also used for dramatic effect; it streamed down from cupolas and was reflected from an abundance of gilding. Solomonic columns were often used to give an illusion of upward motion, and other decorative elements occupied every available space. In Baroque palaces, grand stairways became a central element.  Besides architecture, Baroque painting and sculpture are also characterised by dynamism. This contrasts with the static, peaceful nature of Renaissance art. Besides the building itself, the space where it was placed also played a role.

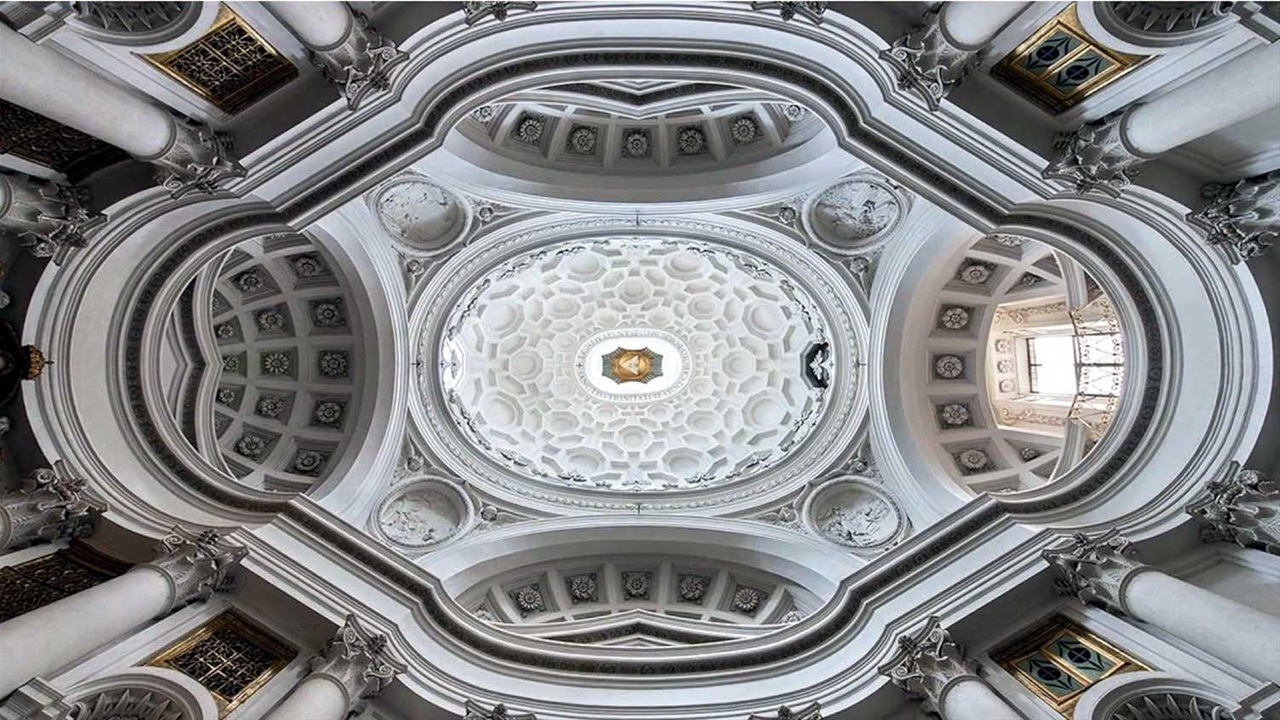

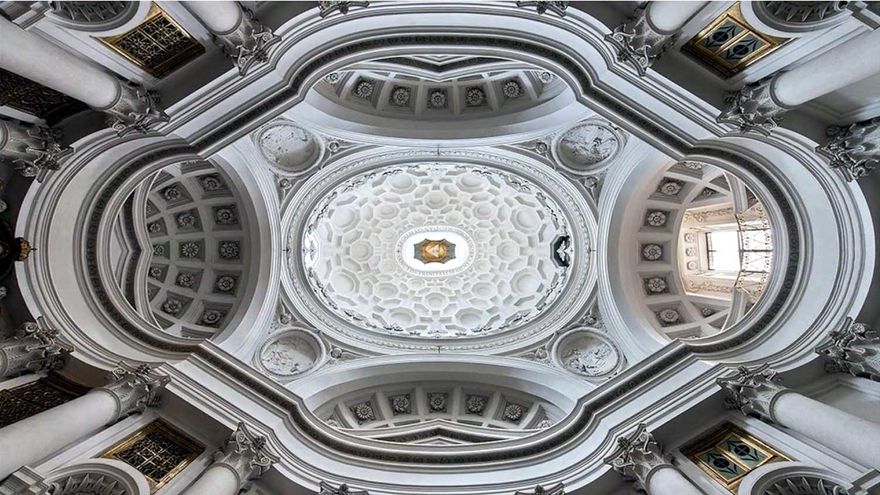

Both Baroque and Rococo buildings try to seize viewers' attention and dominate their surroundings, whether on a small scale, such as the San Carlo alle Quattro Fontane in Rome, or on a massive one, like the new facade of the Santiago de Compostela Cathedral, designed to tower over the city. A manifestation of power and authority on the grandest scale, Baroque urban planning and renewal were promoted by the church and the state alike. It was the first era since antiquity to experience mass migration into cities, and urban planners took idealistic measures to regulate them.

The most notable early example was Domenico Fontana's restructuring of Rome's street plan of Pope Sixtus V. Architects had experimented with idealised city schemes since the early Renaissance, examples being Leon Battista Alberti (1404-1472 A.D.) planning a centralised model city, with streets leading to a central piazza, or Filarete (Antonio di Pietro Aver(u)lino, c. 1400-c. 1469 A.D.) designing a round city named Sforzinda (1451-1456 A.D.) that he based on parts of the human body in the idea that a healthy city should reflect the physiognomy of its inhabitants. However, none of these idealistic cities has ever been built.

In fact, few such projects were put into practice in Europe as new cities were prohibitively costly, and existing urban areas, with existing churches and palaces, could not be demolished. Only in the Americas, where architects often had a clean space to work with, were such cities possible, as in Lima (Peru) or Buenos Aires (Argentina). The earliest Baroque ideal city is Zamość, built north-east of Krakow (Poland) by the Italian architect Bernardo Morando (c. 1540-1600 A.D.), being a centralised town focusing on a square with radiating streets. Where entire cities could not be rebuilt, patrons and architects compensated by creating spacious, symmetrical squares, often with avenues radiating at perpendicular angles and focusing on a fountain, statue, or obelisk.

A good example of this is the Place des Vosges (formerly Place Royale), commissioned by Henry IV, probably after plans by Baptiste du Cerceau (1545-1590 A.D.). The most famous Baroque space in the world is Gianlorenzo Bernini's St. Peter's Square in Rome. Similar to ideal urban planning, Baroque gardens are characterised by straight avenues and geometric spaces.

Baroque architects took the basic elements of Renaissance architecture, including domes and colonnades, and made them higher, grander, more decorated, and more dramatic. The interior effects were often achieved through the use of quadratura (i.e., trompe-l'oeil painting combined with sculpture): the eye is drawn upward, giving the illusion of looking into the heavens. Clusters of sculpted angels and painted figures crowd the ceiling. Light was also used for dramatic effect; it streamed down from cupolas and was reflected from an abundance of gilding. Twisted columns were also often used to give an illusion of upward motion, and cartouches and other decorative elements occupied every available space. In Baroque palaces, grand stairways became a central element.

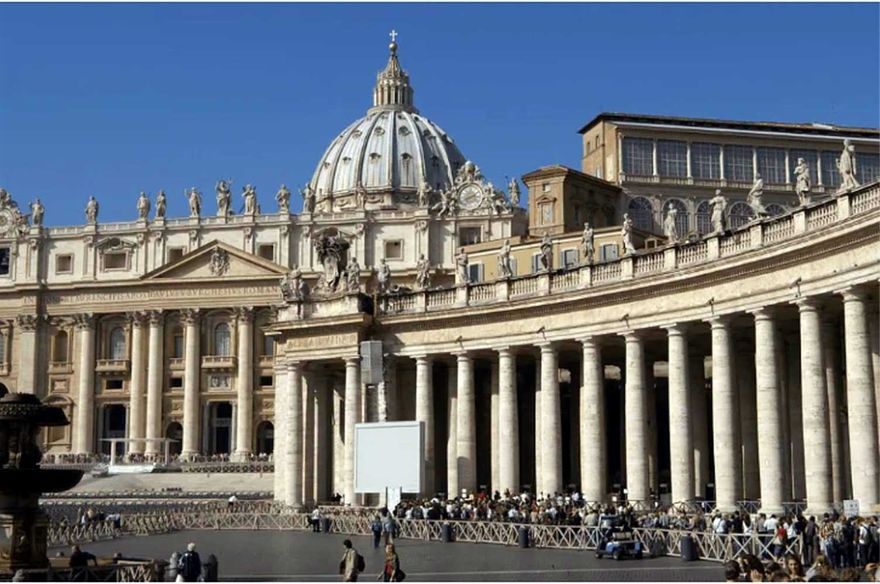

The Early Baroque (1584–1625 A.D.) was largely dominated by the work of Roman architects, notably the Church of il Gesù by Giacomo della Porta (consecrated 1584 A.D.) façade and colonnade of Saint Peter's Basilica by Carlo Maderno (completed 1612 A.D.) and the lavish Barberini Palace interiors by Pietro da Cortona (1633–1639 A.D.), and Santa Susanna (1603 A.D.), by Carlo Maderno. In France, the Luxembourg Palace (1615–45 A.D.), built by Salomon de Brosse for Marie de Medici, was an early example of the style.

The High Baroque (1625–1675 A.D.) produced major works in Rome by Pietro da Cortona, including the (Church of Santi Luca e Martina) (1635–50 A.D.); by Francesco Borromini (San Carlo alle Quattro Fontane), (1634–1646 A.D.)); and by Gian Lorenzo Bernini (The colonnade of Saint Peter's Piazza),  (1656–57 A.D.). In Venice, High Baroque works included Baldassare Longhena's Santa Maria della Salute. Examples in France included the pavillon de l'Horloge of the Louvre Palace by Jacques Lemercier (1624–1645 A.D.), the Chapel of the Sorbonne by Jacques Lemercier (1626–35 A.D.), and the Chateau de Maisons by Francois Mansart (1630–1651 A.D.).

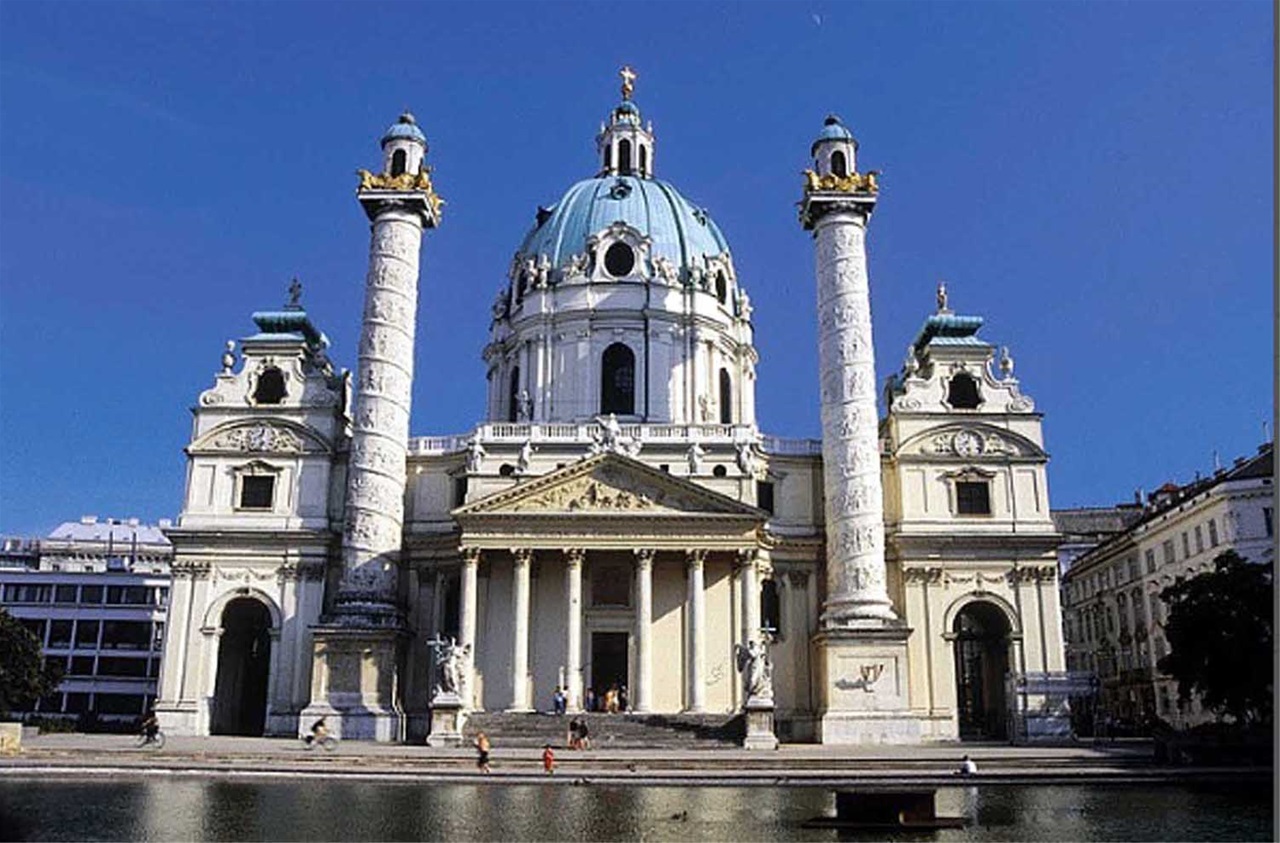

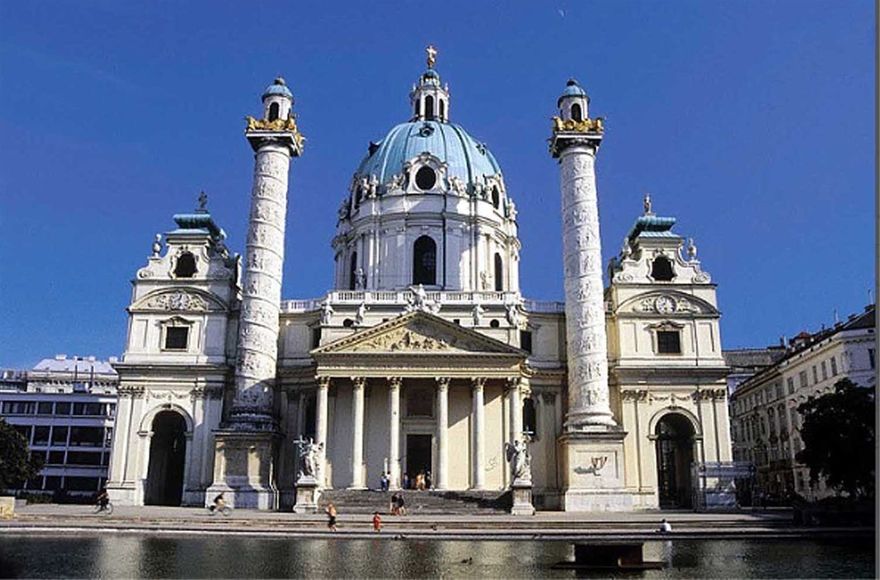

The Late Baroque (1675–1750 A.D.) saw the style spread throughout Europe and to the New World colonies of Spain and Portugal. National styles became more varied and distinct. The Late Baroque in France, under Louis XIV, was more ordered and classical; examples included the Hall of Mirrors of the Palace of Versailles and the dome of Les Invalides. An especially ornate variant appeared in the early 18th century; it was first called Rocaille in France, then Rococo in Spain and Central Europe. The sculpted and painted decoration covered every space on the walls and ceiling. Its most celebrated architect was Balthasar Neumann, noted for the Basilica of the Fourteen Saints and the Wurzburg Residence. (1749–51 A.D.).

ROCOCO

Rococo  and Rocaille Exoticism

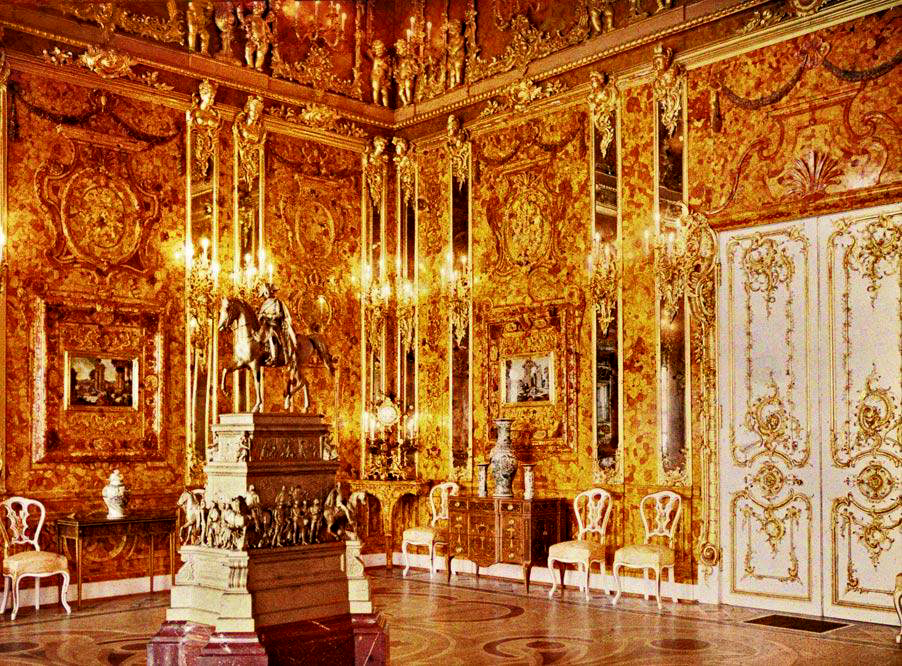

The name Rococo derives from the French word rocaille, which describes shell-covered rock-work, and coquille, meaning seashell. Rococo architecture is fancy and fluid, accentuating asymmetry with abundant curves, scrolls, gilding, and ornamentation. The style enjoyed great popularity with the ruling elite of Europe during the first half of the 18th century. It developed in France out of a new fashion in interior decoration and spread across Europe.

Domestic Rococo abandoned Baroque's high moral tone, its weighty allegories, and its obsession with legitimacy; in fact, its abstract forms and carefree, pastoral subjects were more closely related to notions of refuge and joy, creating a more forgiving atmosphere for polite conversation. Rococo rooms are typically smaller than their Baroque counterparts, reflecting a movement towards domestic intimacy. Even the grander salons used for entertaining were more modest in scale, as social events involved smaller numbers of guests.

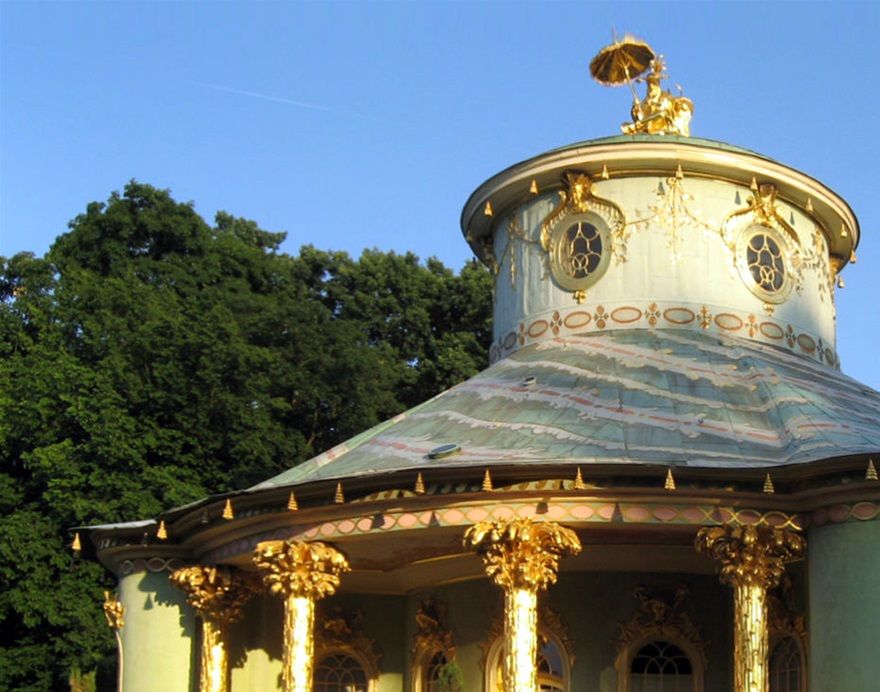

Characteristic of the style were Rocaille motifs derived from the shells, icicles, and rock-work or grotto decoration. Rocaille arabesques were mostly abstract forms, laid out symmetrically over and around architectural frames. A favourite motif was the scallop shell, whose top scrolls echoed the basic S and C framework scrolls of the arabesques and whose sinuous ridges echoed the general curvilinearity of the room decoration.

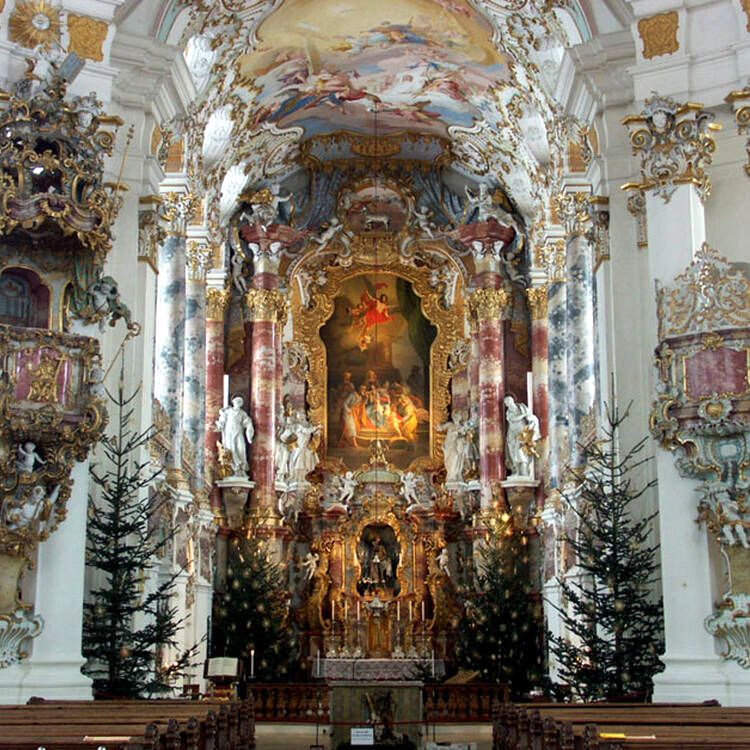

While few Rococo exteriors were built in France, a number of Rococo churches are found in southern Germany. Other widely-user motifs in decorative arts and interior architecture include acanthus and other leaves, birds, bouquets, fruits, elements associated with love (putti, quivers with arrows and arrowed hearts) trophies of arms, putti, medallions with faces, many many flowers, and Far Eastern elements (pagodas, dragons, monkeys, bizarre flowers, bamboo, and Chinese people).

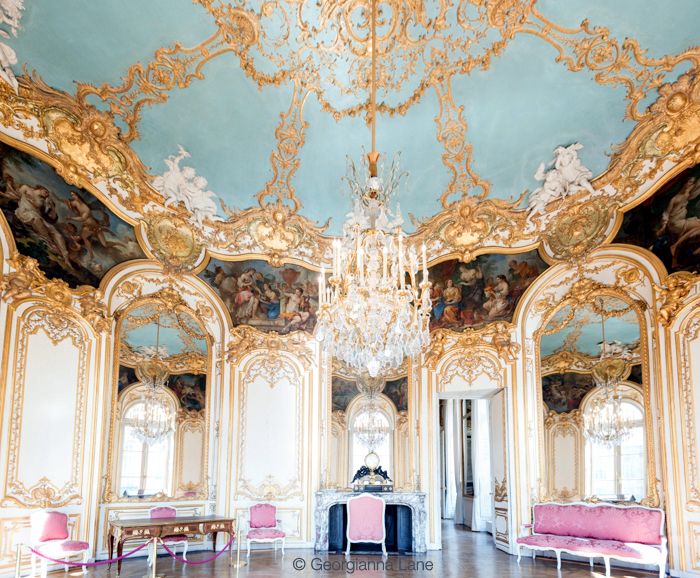

Pastel colours were widely used, such as light blue, mint green, and pink. Rococo designers also loved mirrors (the more, the better), as seen in the Hall of Mirrors of the Amalienburg (Munich, Germany), by Johann Baptist Zimmermann. Generally, mirrors are also featured above fireplaces. Rococo features exuberant decoration, with an abundance of curves, counter-curves, undulations, and elements modeled on nature. The exteriors of Rococo buildings are often simple, while the interiors are entirely dominated by their ornament. The style was highly theatrical, designed to impress and awe at first sight.

Church floor plans were often complex, featuring interlocking ovals. In palaces, grand stairways became centrepieces and offered different points of view of the decoration. The main ornaments of Rococo are asymmetrical shells, acanthus, and other leaves, birds, bouquets, fruit, musical instruments, angels, and Chinoiserie (pagodas, dragons, monkeys, bizarre flowers, and Chinese people). The style often integrated painting, moulded stucco, wood carving, and quadratura, or illusionist ceiling paintings, designed to give the impression that those entering the room were looking up at the sky, where cherubs and other figures gazed down at them.

Materials used included stucco, either painted or left white; combinations of different-coloured woods (usually oak, beech, or walnut); lacquered wood in the Japanese style; gilded bronze ornamentation; and marble tops for commodes or tables. The intent was to create an impression of surprise, awe, and wonder on the first view.

NEOCLASSICISM

Neoclassical Architecture

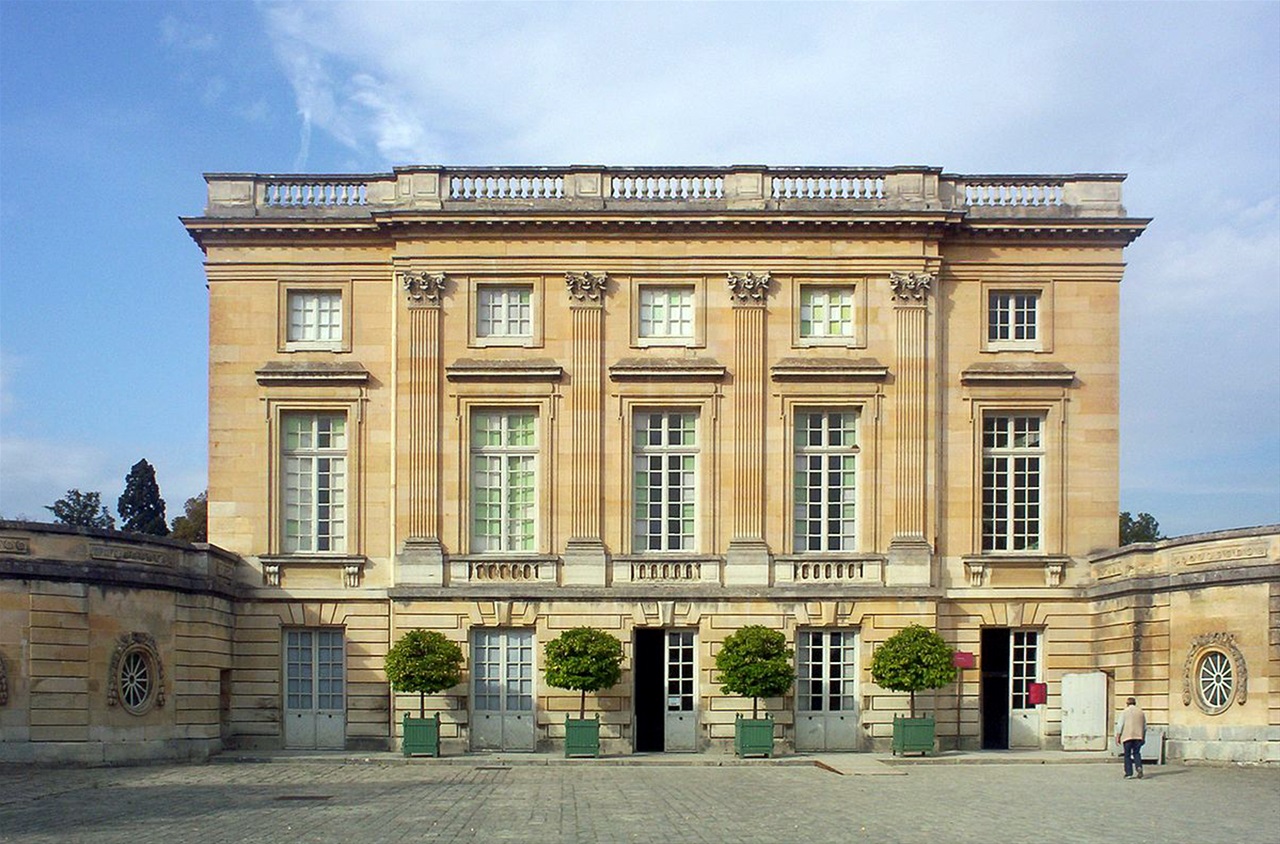

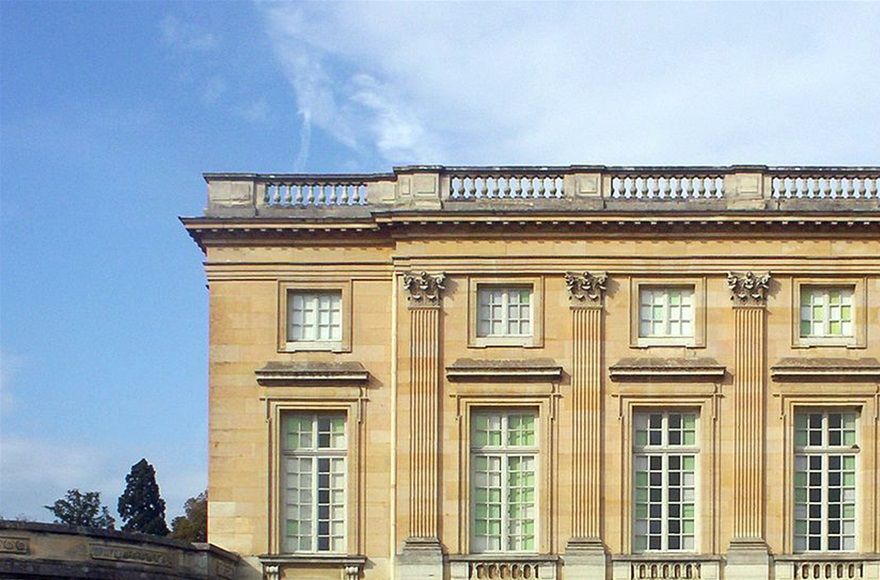

The Petit Trianon (Versailles, France), 1764 A.D., by Ange-Jacques Gabriel. Neoclassical architecture focused on Ancient Greek and Roman details, plain white walls, and a grand scale. Compared to the previous styles, Baroque and Rococo, Neoclassical exteriors tended to be more minimalist, featuring straight, angular lines, yet still ornamented.

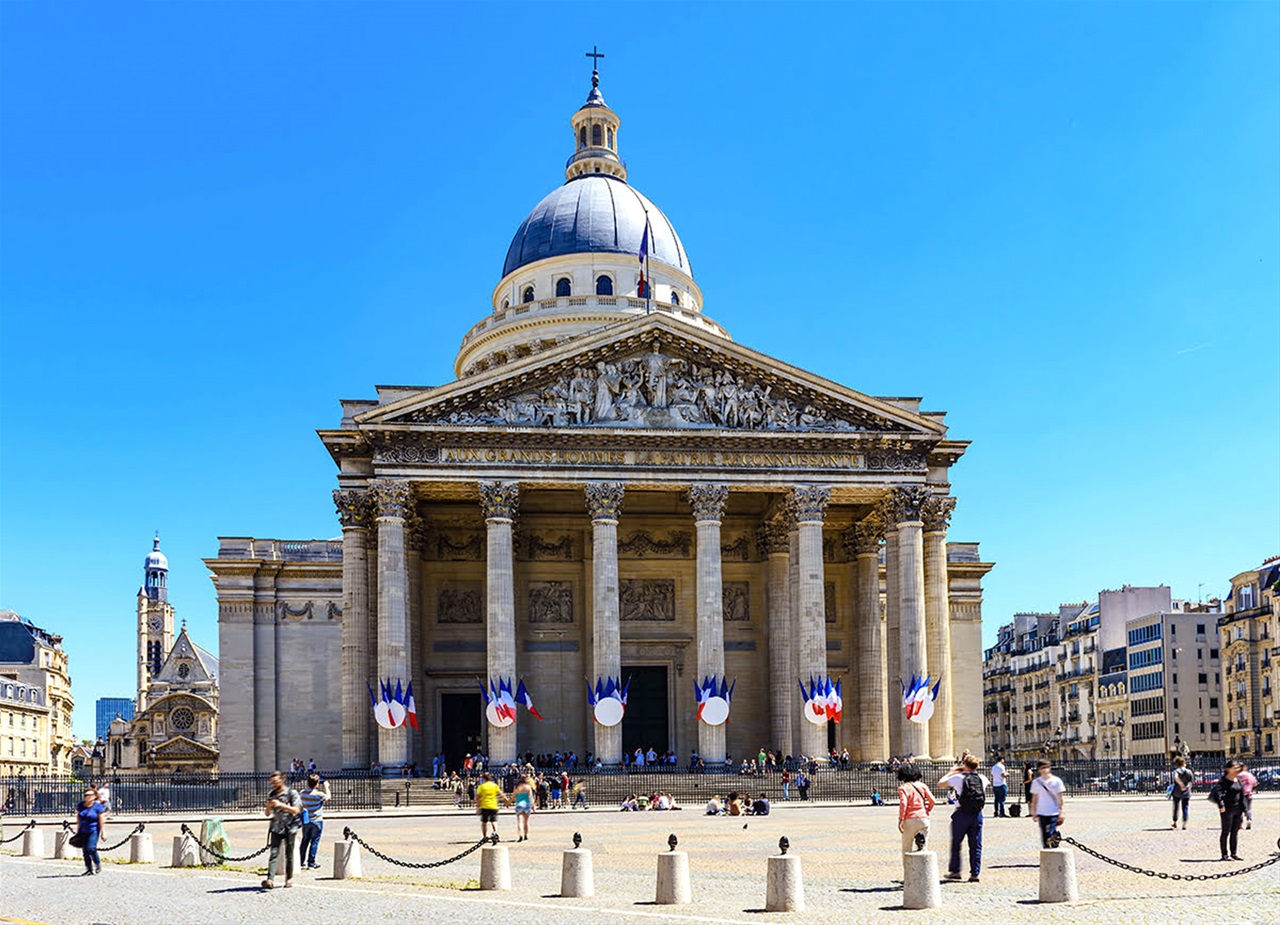

The style's clean lines and sense of balance and proportion worked well for grand buildings (such as the Panthéon in Paris) and for smaller structures alike (such as the Petit Trianon). Excavations during the 18th century at Pompeii and Herculaneum, which had both been buried under volcanic ash during the 79 A.D. eruption of Mount Vesuvius, inspired a return to order and rationality. In the mid-18th century, antiquity was upheld as a standard for architecture as never before. Neoclassicism was a fundamental investigation of the very bases of architectural form and meaning. In the 1750s, an alliance between archaeological exploration and architectural theory started, which will continue in the 19th century.

Marc-Antoine Laugier wrote in 1753 A.D. that 'Architecture owes all that is perfect to the Greeks'. The style was adopted by progressive circles in other countries such as Sweden and Russia. Federal-style architecture is the name for the classicising architecture built in North America between c. 1780 A.D. and 1830 A.D., and particularly from 1785 A.D. To 1815 A.D. This style shares its name with its era, the Federal Period. The term is also used in association with furniture design in the United States of the same time period.

The style broadly corresponds to the middle-class classicism of the Biedermeier style in the German-speaking lands, the Regency style in Britain, and the French Empire style. In Central and Eastern Europe, the style is usually referred to as Classicism (German: Klassizismus, Russian: Классицизм), while the newer Revival styles of the 19th century to the present are called neoclassical. Étienne-Louis Boullée (1728–1799 A.D.) was a visionary architect of the period. His utopian projects, never built, included a monument to Isaac Newton (1784 A.D.) in the form of an immense dome, with an oculus allowing the light to enter, giving the impression of a sky full of stars. His project for the enlargement of the Royal Library (1785 A.D.) was even more dramatic, featuring a gigantic arch that sheltered the library's collection.

While none of his projects was ever built, the images were widely published and inspired architects of the period to look outside the traditional forms. As in the Renaissance and Baroque periods, during the Neoclassical period, urban theories of how a good city should appear also emerged. Enlightenment writers of the 18th century decried the problems of Paris at that time, the biggest one being the large number of narrow medieval streets crowded with modest houses. Voltaire openly criticised the French Royal administration for failing to initiate public works, improve the quality of life in towns, and stimulate the economy. 'It is time for those who rule the most opulent capital in Europe to make it the most comfortable and the most magnificent of cities.

There must be public markets, fountains that actually provide water, and regular pavements. The narrow and infected streets must be widened, monuments that cannot be seen must be revealed, and new ones built for all to see, Voltaire insisted in a polemical essay on 'The Embellishments of Paris' in 1749 A.D. In the same year, La Font de Saint-Yenne criticised how Louis XIV's great east façade of the Louvre was all but hidden from views by a dense quarter of modest houses. Voltaire also said that to transform Paris into a city that could rival ancient Rome, it was necessary to demolish more than to build. 'Our towns are still what they were, a mass of houses crowded together haphazardly without system, planning or design', Marc-Antoine Laugier complained in 1753 A.D. Writing a decade later, Pierre Patte promoted urban reform in the quest for health, social order, and security, and at the same time launched a medical and organic metaphor that compared the operations of urban design to those of surgeons. With poor air quality and a lack of fresh water, its current state was pathological, Patte asserted, calling for fountains to be installed at principal intersections and markets. Squares are recommended to promote air circulation, and, for the same reason, houses on the city's bridges should be demolished.

He also criticised the location of hospitals next to markets and protested continued burials in overcrowded city churchyards. Besides cities, new ideas of how a garden should be appeared in 18th century England, making a place for the English landscape garden (styled Jardin à l'Anglaise), characterised by an idealised view of nature, and the use of Greco-Roman or Gothic ruins, bridges, and other picturesque architecture, designed to recreate an idyllic pastoral landscape. It was the opposite of the symmetrical and geometrically planned Baroque garden, (styed Jardin à la Française).
